Door handle setTRI 134
Art. No. 134133278

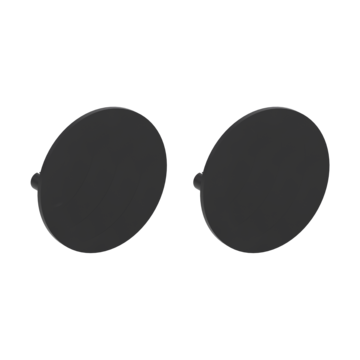

Round escutcheons
Straight-edged escutcheons
Profile cylinder
Cipher bit
WC
OS
Satin stainless steel
R
129.13 €
MSRP (based on german VAT)*
TRI 134
Made for the hand
When designing the TRI 134 handle profile, we took a close look at the cavity that the hand forms when gripping. In the process, we realized that this cavity resembles neither a circle, an oval nor a rectangle, but rather has the shape of a gently rounded triangle. Based on this insight, we developed a completely new handle profile with three sides in Blaustein. The result is TRI 134, a door handle that is literally "made for the hand". Its ergonomic design not only offers unique comfort, but also gives your door a timeless and elegant character. Experience the perfect combination of functionality and design with TRI 134.
Supplied with
handle pair inc. rosette, smart2lock pin, mounting set
Where should the closing button be located?
Right
Inside lever handle with locking knob pointing to the right
- For DIN left door opening outwards
- For DIN right door opening inwards
Left
Inside lever handle with closing knob pointing to the left
- For DIN left door opening inwards
- For DIN right door opening outwards
Graphite black
Black is finding its way into architecture, whether on large window fronts, as entrance doors or in interior details. Griffwerk offers the right selection of black fittings. A special feature is the black shade developed by GRIFFWERK, inspired by the black of graphite. The material look is reminiscent of black graphite powder, the feel is surprisingly soft. Graphite black impresses with its unusual, velvety matt finish and soft surface. Graphite black accents can be repeated in the room. They have a very noble effect and do not stand for elegant refinement and luxury for nothing. Griffwerk offers graphite black design in various product categories, allowing a holistic design of any interior. Graphite black is close to the RAL colour RAL 9011 (graphite black). Whether door handle, window handle, handle shell pair or even just handle bar, what is important is a uniform interplay of different colour elements that emerges from a conscious colour concept.
Important installation instructions for smart2lock
Anatomy and movement patterns guide design
In the search for the perfect haptic experience, GRIFFWERK tested a wide variety of profiles in several studies. Finally, several criteria could be defined that are relevant for a "perfect" gripping experience:
The "perfect" profile corresponds to the hollow space,of the closing hand. This is three-sided for anatomical reasons and not round or rectangular
During operation, the angle of the closed hand is changed, as well as the position of the user in space. The closed hand is therefore "moved" on the door handle. It does not remain static. The edges must therefore be softly rounded to allow for movement play.
Most pressure is exerted on the upper contact surface. This is also the largest contact surface between the door handle and the hand. It therefore plays the most important role for the grip feeling. It is particularly pleasant if it is kept very wide, as is the case with TRI.
The upper contact surface should also be inclined towards the door. An angle that slopes gently towards the door corresponds to the natural posture of the wrist when operating a door handle. Thanks to the inclined angle, the wrist is not hyperextended when pressing the handle (as would be the case with a horizontal surface).
Door handle TRI 134 was developed based on these criteria.
A new classic
Door handle TRI 134 is one of the simple, minimalist design forms that fit any door and any architectural style. In addition to a shapely, restrained design, it offers exceptional gripping comfort.
Haptic in perfection
We have developed a profile cross-section with a "perfect feel". Anatomical requirements and movement patterns were taken into account. The gripping area now has three sides and thus corresponds exactly to the actual cavity of the gripping hand. This is not round but has a three-sided shape due to the joints of the hand.
The Greek pronoun "TRI" ("three" or "threefold") therefore became the eponym of the first handle introduced with the new profile.
Its shape literally nestles against the hand.
DOOR HANDLE SETS
Door handle sets are door fittings that consist of door handles and the corresponding plates or rosettes and are used to open and close doors. Inside the door is a square lever handle pin, which is connected to a lever handle on both sides - via the so-called spindle part.
ROUND ROSETTE SETS
Round rosettes are the circular plates that are fitted around the door handle and keyhole to cover the hole in the door leaf and provide a decorative as well as functional cover. Rosettes combine aesthetic design with functionality. Matching the handle, they are available in the same finishes such as stainless steel, cashmere gray or brass look to suit different interior styles.
SMART2LOCK 2.0: WHAT IS IT?
Thanks to the innovative "smart2lock 2.0" locking technology, the door handle does not require a key rosette; the locking bolt is located on the top of the handle. As an occupied indicator, a red dot on the outside signals that the door is locked. The door can be emergency unlocked with a pointed object, e.g. a ballpoint pen.
Door handles: FAQ
Yes, usually a screwdriver or cordless screwdriver is sufficient to remove the protective fittings and pull out the door handle.
A continuing trend: Black Door handles. Griffwerk offers a comprehensive range of these. The special feature: The black door handle is available from Griffwerk in the specially developed black shade Graphite black: particularly matt, high-quality, soft feel.
Door handles can be made of metal, aluminum, brass, stainless steel or plastic. Most door handles are silver, gold or black. Plastic door handles can have almost any color. Round and curved door handles go best with playful furnishings. To a design interior fit clean and straight lines.
Mortice lock door handle sets, BB sets for short, are suitable for room doors made of wood. Doors that are typically equipped with a door lock cylinder require a door handle with profile cylinder insert, or PZ for short. The most common door handle for use on bathrooms and toilets is the WC set with closer. For more intelligent closing and locking, there are door handles with Griffwerk smart2lock technology. The locking mechanism is integrated in the handle. You no longer need a key rosette. Smart2lock handles also impress with a modern and puristic design.
Many door fitting dimensions are standardized - such as the square spindle and the distance between the lever handle and keyhole.
To ensure that every square spindle fits into every door, they all have the same cross-section of 8 x 8 millimetres - except for fire doors, where there is an extra millimetre. However, the length of square pins varies. It depends on the dimensions of the handle set.
For all room doors, the keyhole is 72 millimetres from the center of the lever handle.
Please note: The external dimensions of the door handles and fittings are different. When replacing them, make sure that the new one is at least as large or larger than the old one.
DIN EN 1906 "Building hardware - Lever handles and door knobs - Requirements and test methods" specifies properties such as permanent function, corrosion resistance, the free angular movement and displacement of lever handles and door knobs. Door handles are differentiated into categories of use (medium to frequent use by persons with low care), fire resistance (no performance to smoke and fire doors), security (from normal purposes to security requirements), corrosion resistance and burglary resistance.
Rosette door handles, escutcheon door handles, lever handles, half handles, Ulmer door handle - and all of this made from a wide variety of materials. In addition, there are long plates, short plates, fire protection fittings, security fittings and many more.
